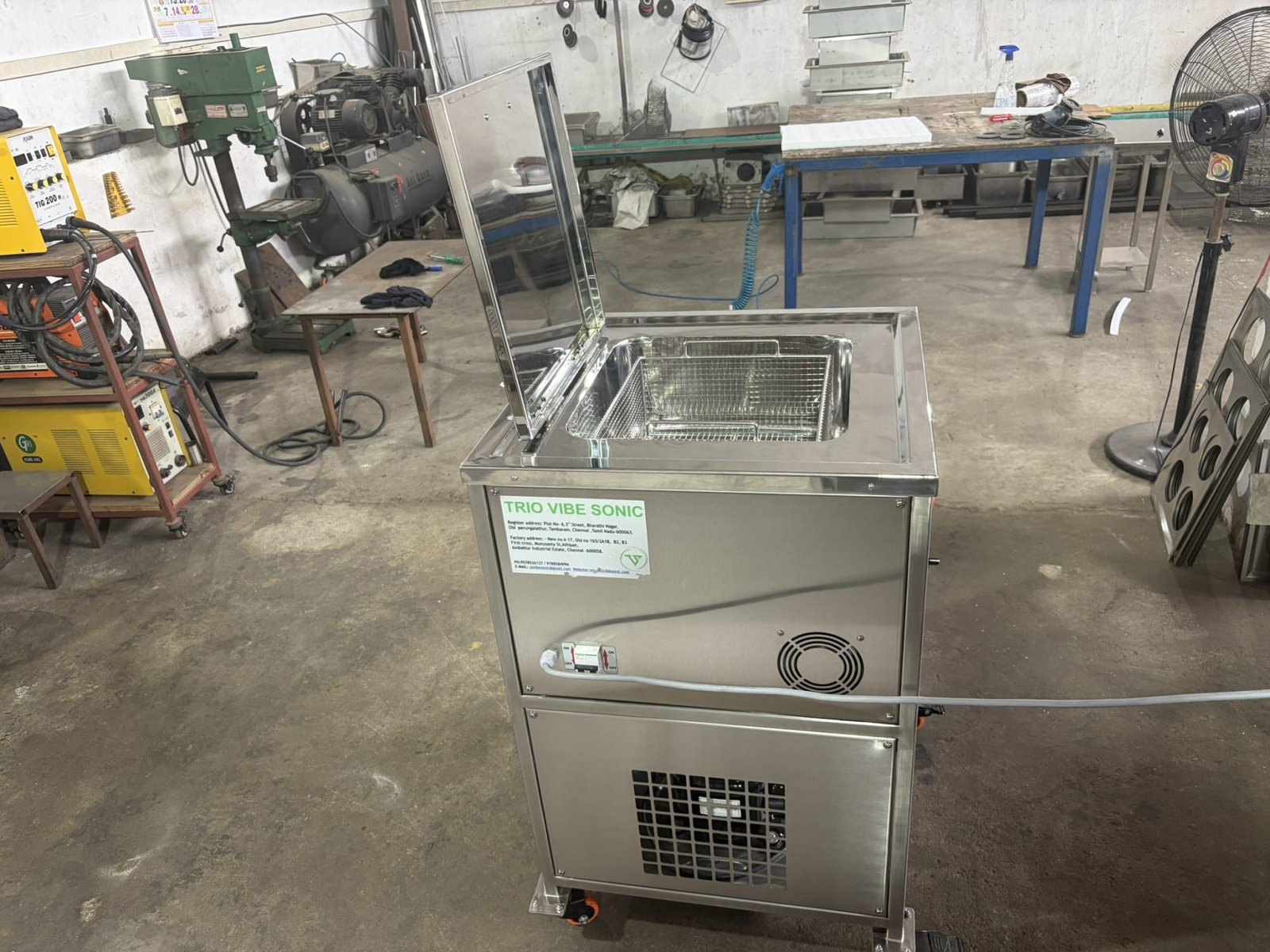

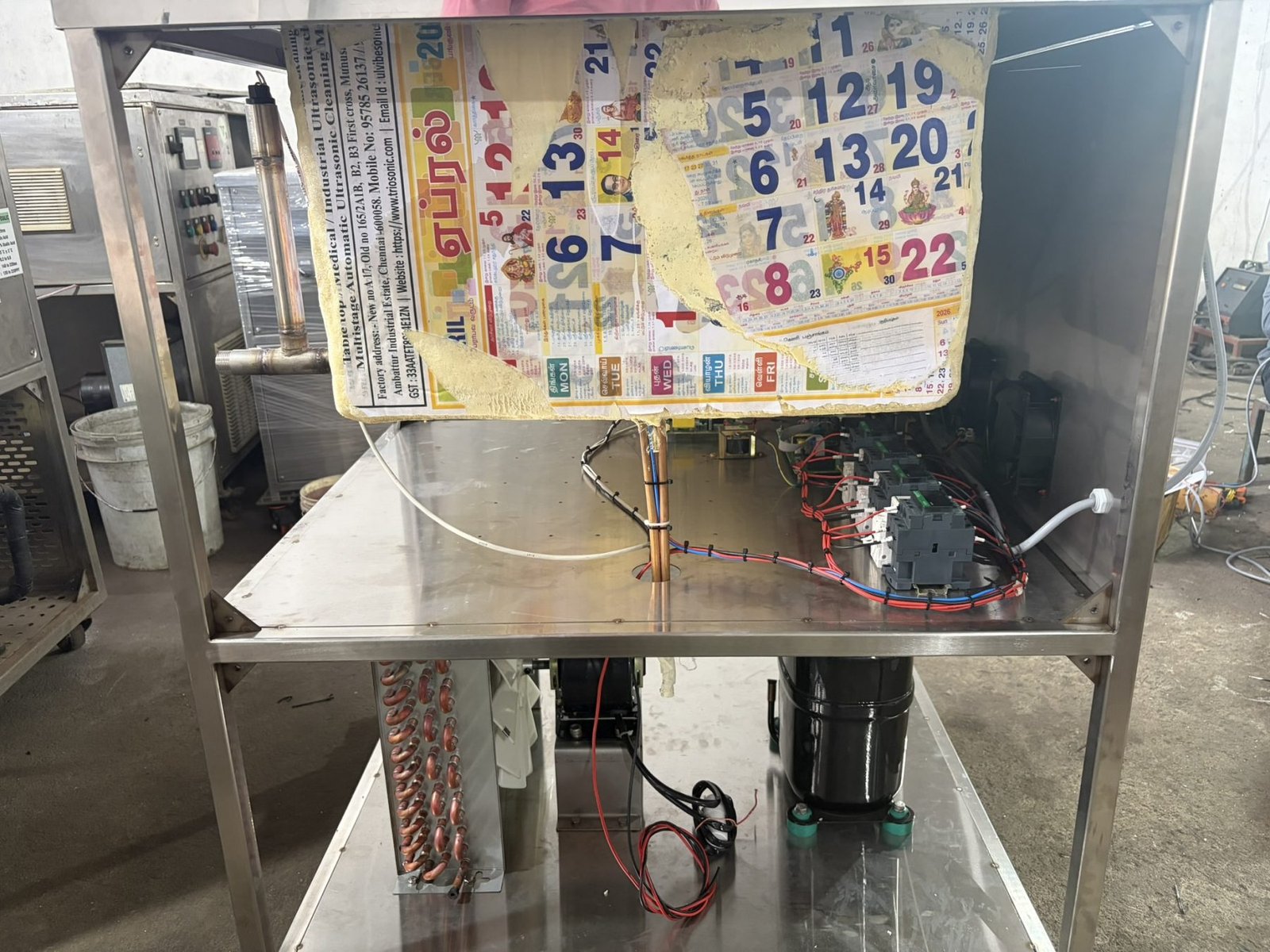

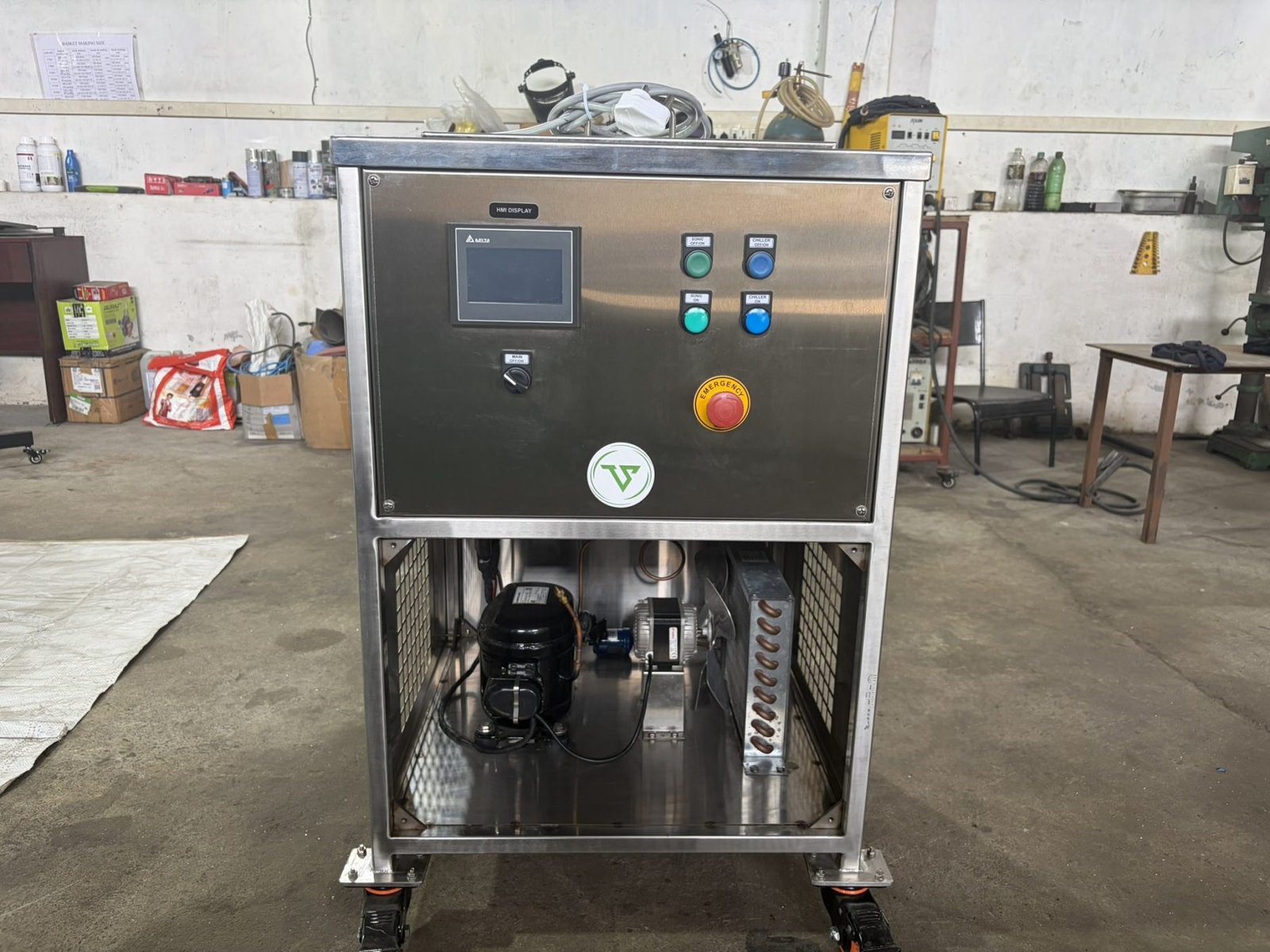

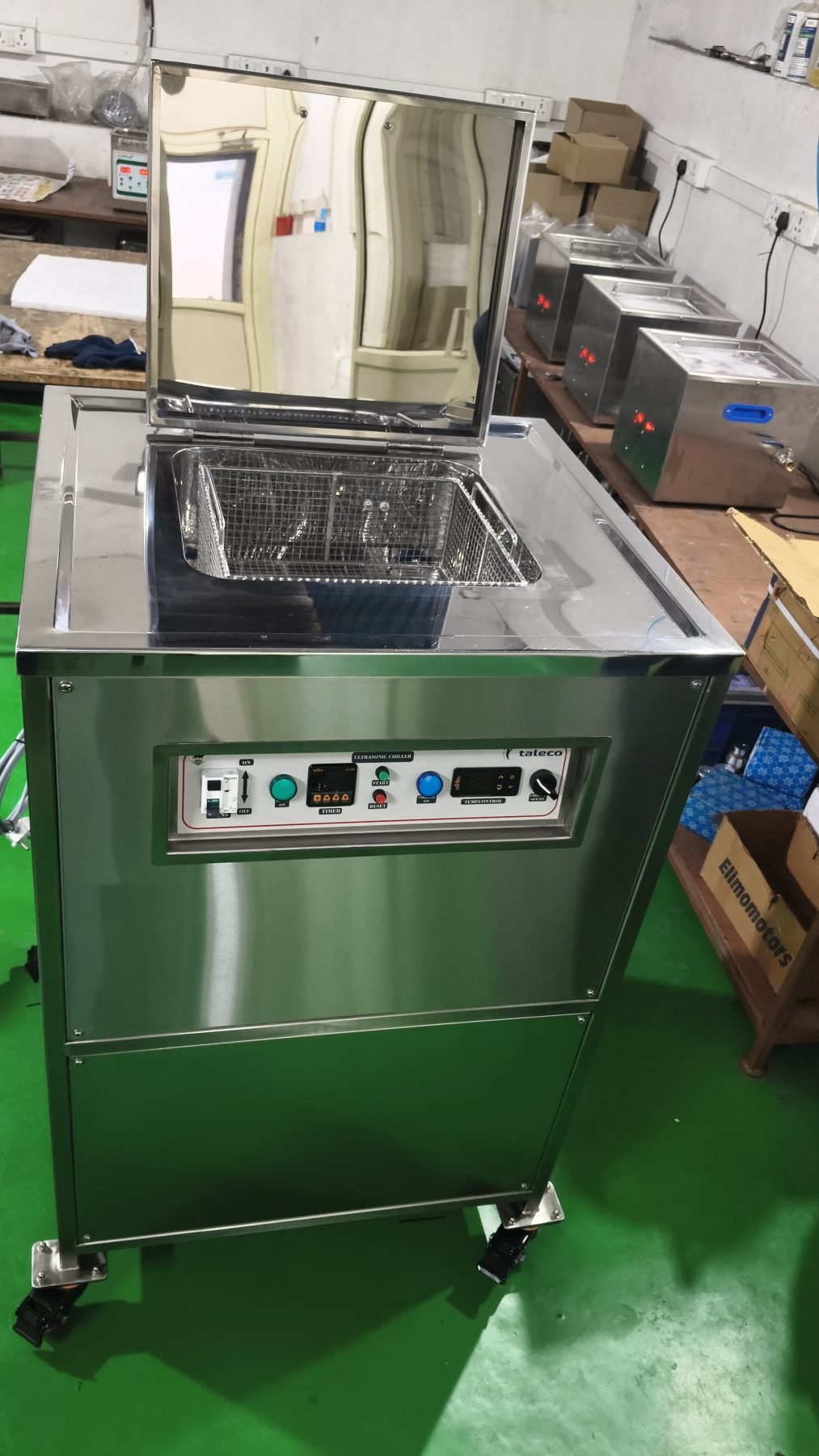

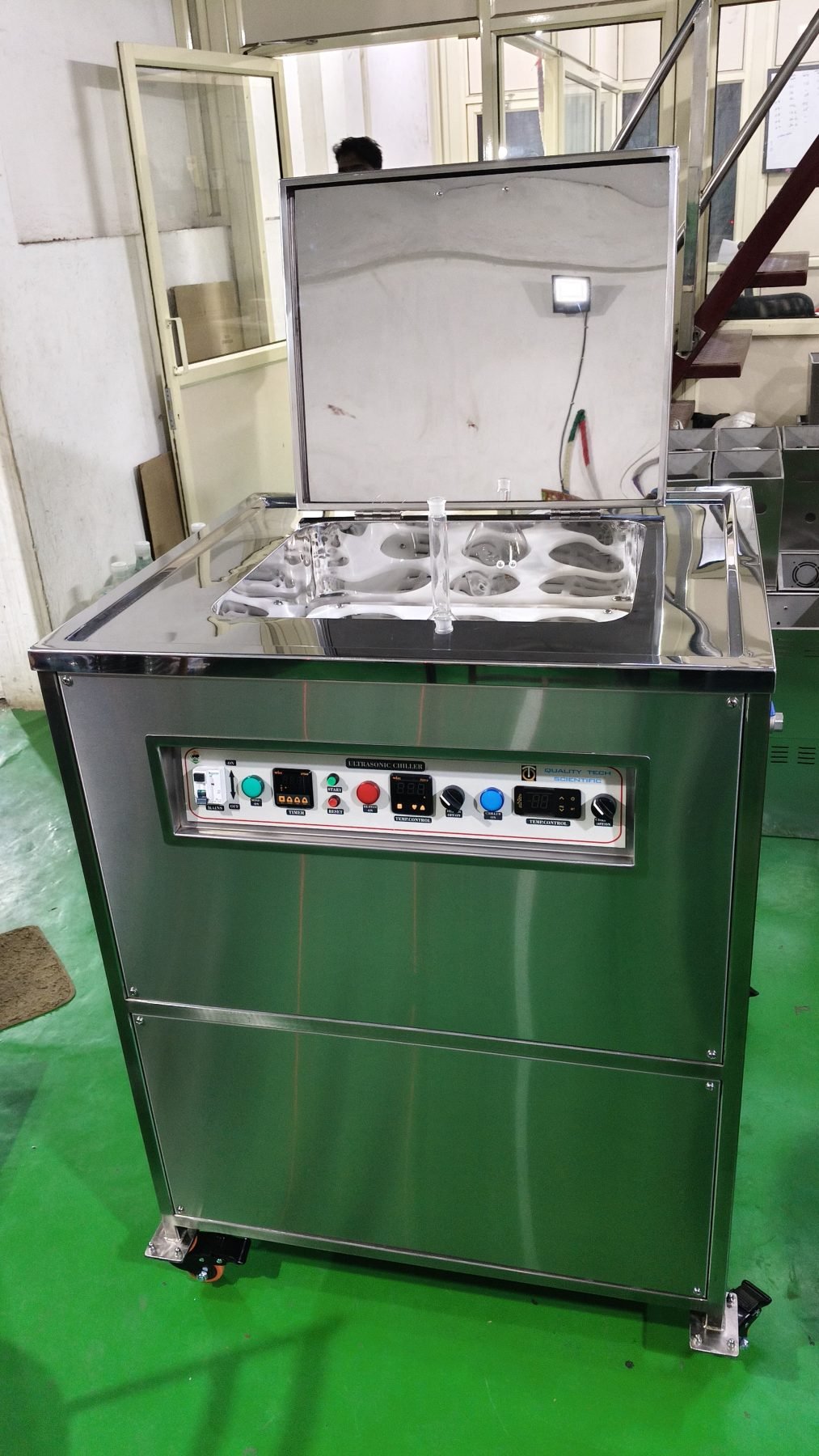

TRIO VIBE SONIC ultrasonic cleaning with chiller – proposed 20 L configuration, with customisation available to suit component, process and throughput requirements.
| Parameter | Specification |
|---|---|
| Model | TVS-UC-20 |
| Nominal capacity / configuration | 20 L |
| Cleaning / process method | Ultrasonic cleaning + refrigeration cooling |
| Tank / chamber construction | SS304 / SS316 |
| Ultrasonic frequency | 40 kHz typical / custom |
| Electrical supply | As per cooling load and electrical design |
| Ultrasonic output power (W) | Available on request — subject to model configuration |
| Ultrasonic generator | Matched to transducer system |
| Chiller cooling capacity | To be calculated from ultrasonic and ambient heat load |
| Target temperature | To be confirmed by application |
| Refrigeration design | Refrigerant and heat exchanger selected during engineering |
| Tank internal dimensions (L × W × H, mm) | Refer to approved model datasheet |
| Overall dimensions (mm) | Refer to approved general arrangement drawing |
| Installed electrical load (kW) | Electrical rating depends on selected model and options |
| Standard / optional classification | Standard equipment and optional accessories are model-dependent |
| Customisation | Dimensions, material, control, accessories and process as required |
