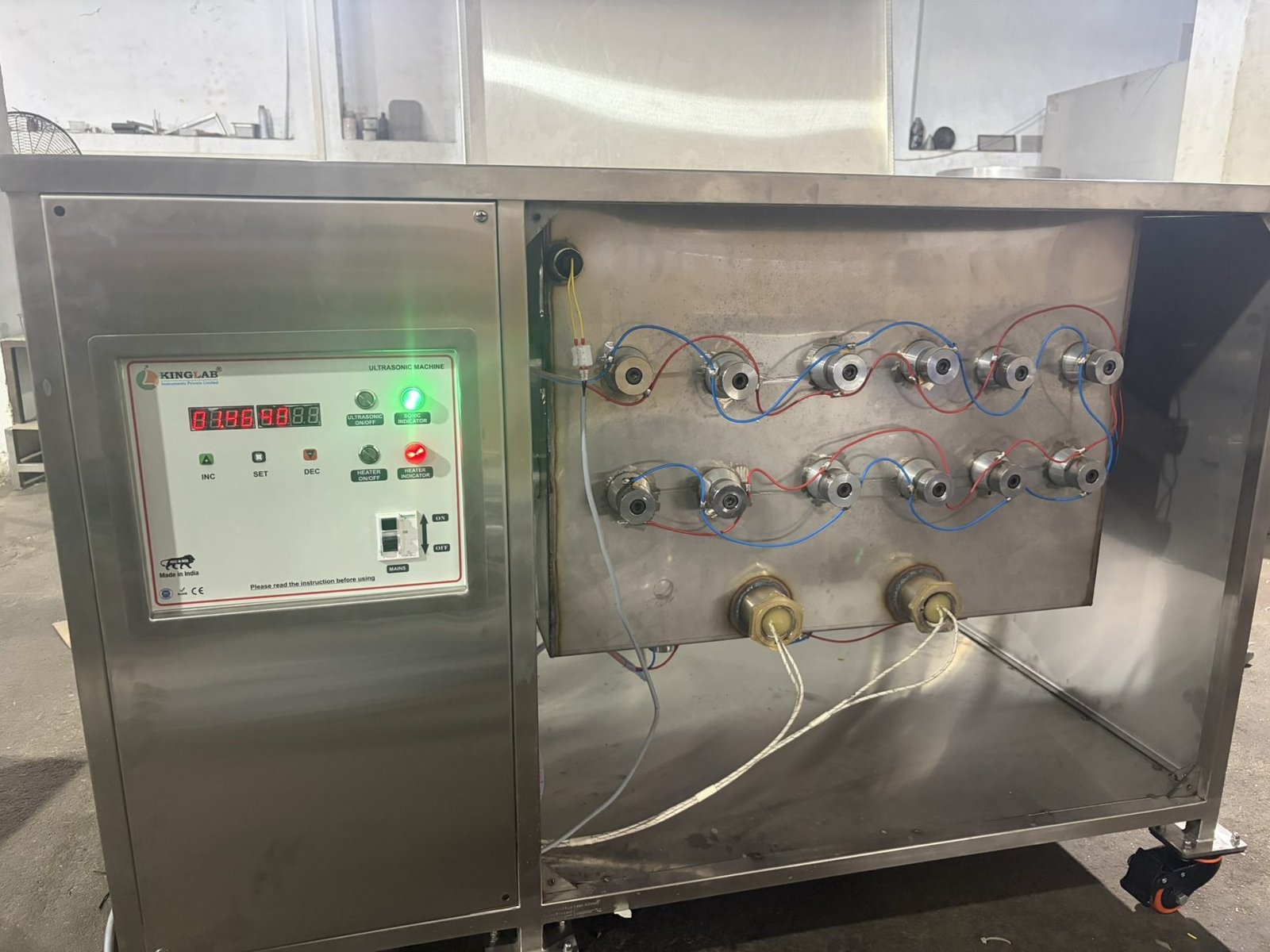

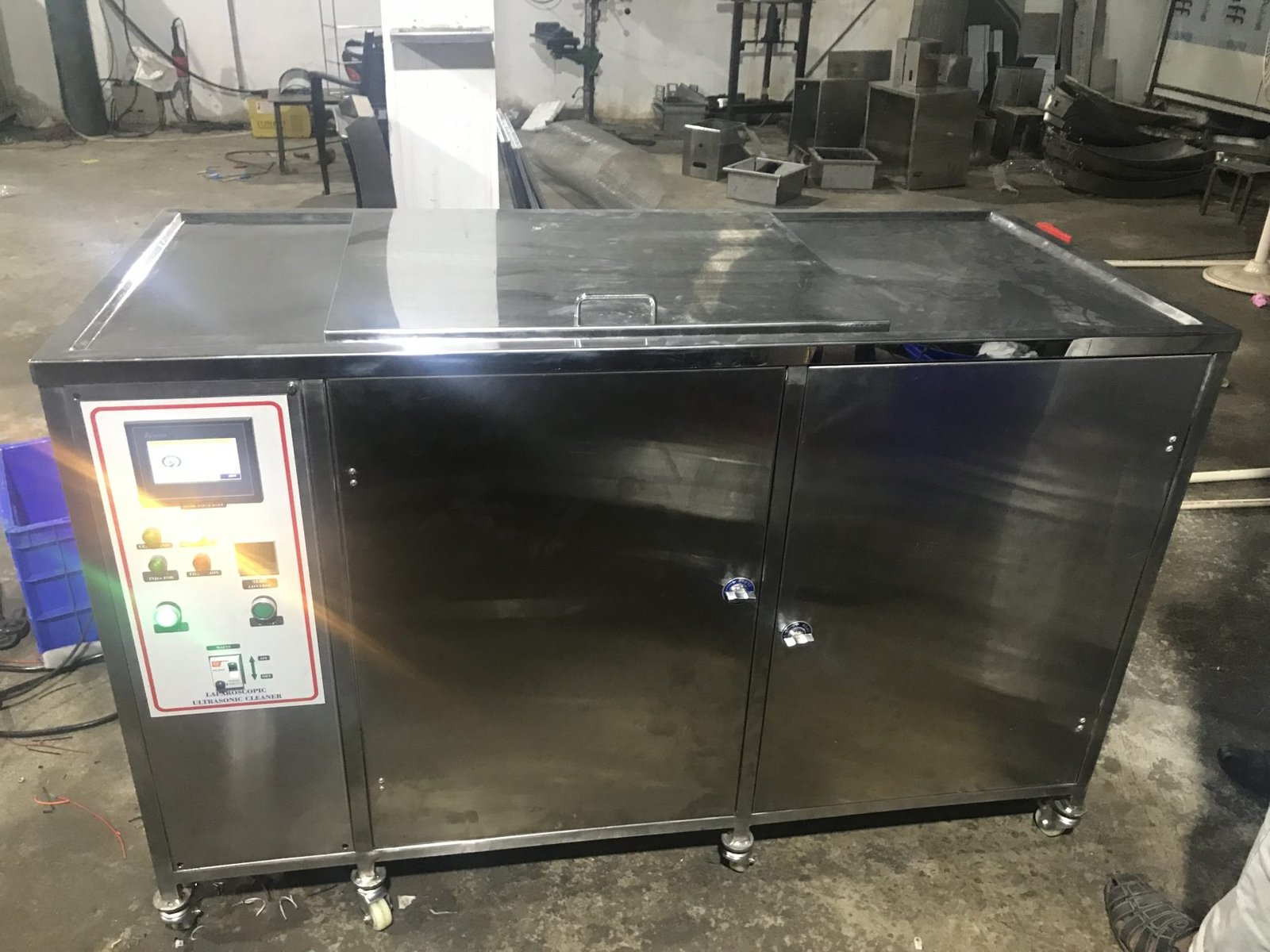

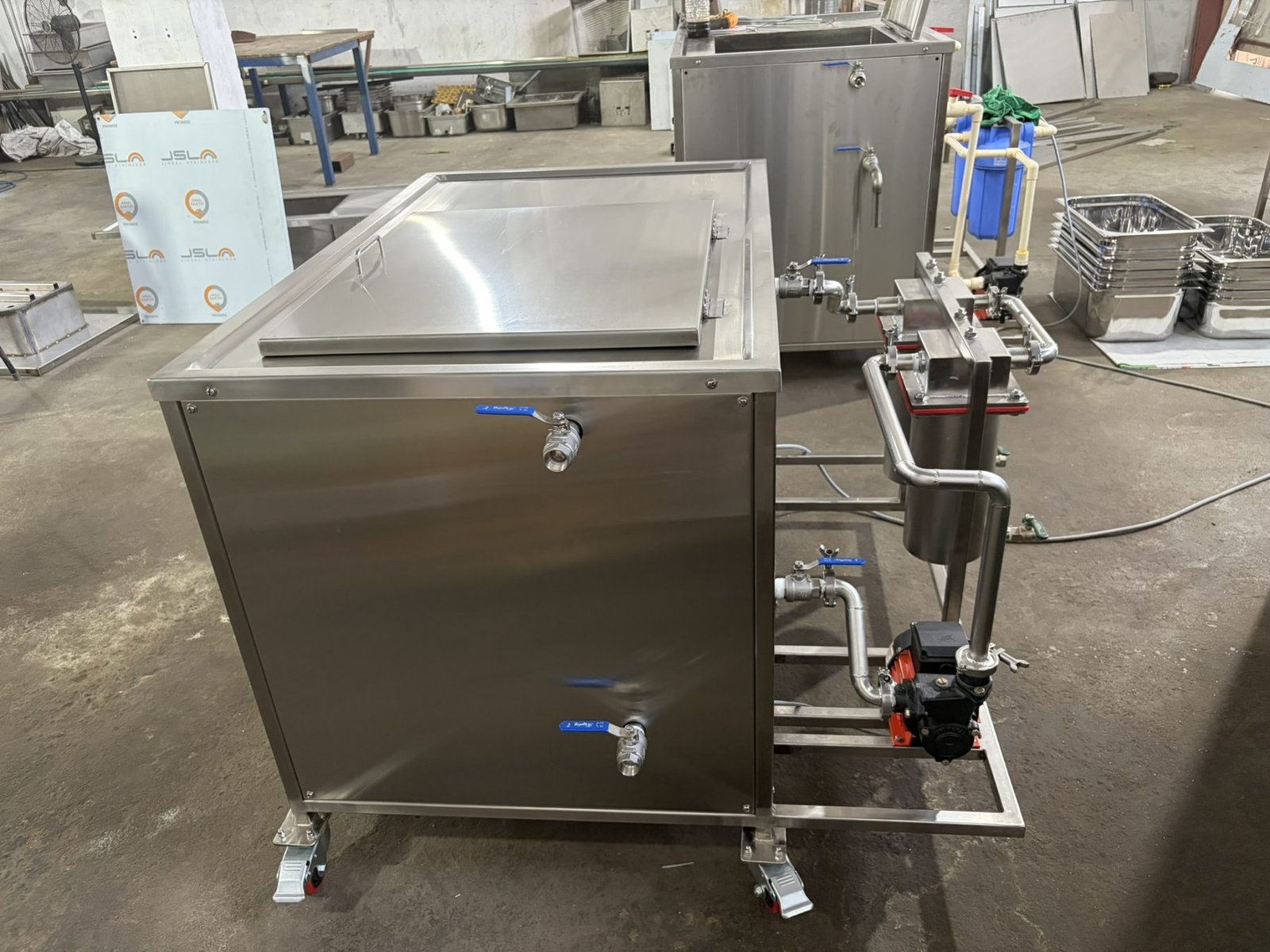

TRIO VIBE SONIC ultrasonic cleaning with basket agitation – proposed 50 L configuration, with customisation available to suit component, process and throughput requirements.
| Parameter | Specification |
|---|---|
| Model | TVS-AG-50 |
| Nominal capacity / configuration | 50 L |
| Cleaning / process method | Ultrasonic cleaning + reciprocating basket motion |
| Tank / chamber construction | SS304 / SS316 |
| Ultrasonic frequency | Application-specific |
| Electrical supply | As per actuator and ultrasonic load |
| Ultrasonic output power (W) | Available on request — subject to model configuration |
| Ultrasonic generator | Matched to transducer system |
| Agitation stroke | To be engineered |
| Agitation speed | Adjustable per process |
| Drive | Motorised or pneumatic |
| Basket load | Based on component mass |
| Tank internal dimensions (L × W × H, mm) | Refer to approved model datasheet |
| Overall dimensions (mm) | Refer to approved general arrangement drawing |
| Installed electrical load (kW) | Electrical rating depends on selected model and options |
| Standard / optional classification | Standard equipment and optional accessories are model-dependent |
| Customisation | Dimensions, material, control, accessories and process as required |
